PumpWorks Industrial

PumpWorks Industrial manufacturers a wide variety of centrifugal process pumps exceeding ANSI B73.1 and other standards for the Chemical and Petrochemical, Pulp and Paper, Food and Beverage, Oil and Gas, Mining, Power Generation, Waste Treatment and General Industrial industries. Teamed with PumpWorks610 and a vast distribution network of DXP Enterprises, the highly experienced staff stands ready to provide the very best quality, price and delivery-meeting your exact specification needs, each and every time.

ANSI Horizontal Process Pump - Model PWA

ANSI B73.1 end suction, top discharge back pull out process pump.
High strength carbon steel liquid end with a broad range of alloyed corrosive resistant materials of construction available.
Rigid heavy duty shaft and bearing system design, exceeding ANSI B 73.1 bearing life specifications. 316 SS shaft material is standard.
5 year unconditional bearing frame warranty is standard with every product.
Proven flinger disk lubrication device to ensure effective bearing lubrication. Provides 30% increased bearing L10 life and minimum 15º lower bearing operating temperatures compared to flood oil design.

PWA ANSI B73.1 is designed, built and tested in the USA to ANSI and ISO exacting standards, while enhancing the typical design to the next level of reliability. High strength carbon steel liquid end and frame adapter material, additional casing thickness and up graded bearing lubrication for increased bearing life are just a few no charge features considered extra from other manufacturers. Coupled with a fully staffed professional sales and service teams and strategically located inventory throughout the Northern Hemisphere insures consistent, rapid shipment tailored to customer specification requirements.

ANSI Low Flow Horizontal Process Pump - Model PWA-LF

PWA-LF ANSI B73.1 Low flow design utilizes matched circular casing with precisely machined discharge channel and a fully shrouded, radial impeller yielding low flow stability.
Impeller balance holes reducing bearing thrust loads for extended bearing life and lower stuffing box pressure and increased seal life.
ANSI B73.1 end suction, top discharge back pull out process pump.
High strength carbon steel liquid end with a broad range of alloyed corrosive resistant materials of construction available.
Rigid heavy duty shaft and bearing system design, exceeding ANSI B 73.1 bearing life specifications. 316 SS shaft material is standard.
5 year unconditional bearing frame warranty is standard with every product.
Proven flinger disk lubrication device to ensure effective bearing lubrication. Provides 30% increased bearing L10 life and minimum 15º lower bearing operating temperatures compared to flood oil design.

PWA-LF ANSI B73.1 Low Flow pump is designed, built and tested in the USA to ANSI and ISO exacting standards, while enhancing the typical design to the next level of reliability. High strength carbon steel liquid end and frame adapter material, additional casing thickness and up graded bearing lubrication for increased bearing life are just a few no charge features considered extra from other manufacturers. Unique circular casing and radial vane impeller provides stable operation at low flow ANSI conditions. Coupled with a fully staffed professional sales and service teams and strategically located inventory throughout the Northern Hemisphere insures consistent, rapid shipment tailored to customer specification requirements.

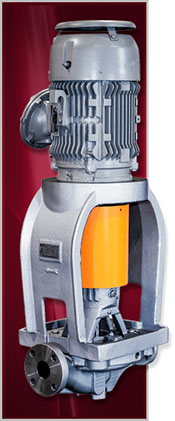

ANSI In-Line Process Pump - Model PWA-IL

ANSI B73.2 In-line process pump. Space saving configuration, lower overall installation cost compared to baseplate mounted pumps.
High strength carbon steel liquid end provided as standard. We also offer a broad range of corrosive resistant alloy materials – from 316ss to Titanium.
Rigid heavy duty shaft and bearing system design, exceeding ANSI B73.2 bearing life specifications. 316 LSS shaft material is standard.
5 year unconditional bearing frame warranty is standard with every product.
Superior high strength carbon steel motor support with machined registered fit, accommodates vertical C-face NEMA electric motors. Optional carbon steel motor support is available to accommodate IEC motors. Simplifies field installation.

PWA-IL ANSI B73.2 is designed, built and tested in the USA to ANSI and ISO exacting standards, while enhancing the typical design to the next level of reliability. High strength Carbon Steel liquid end and motor support material, additional casing thickness and greased lubricated bearings are just a few, no charge features considered extra from other manufacturers. Backed with fully staffed professional sales and service teams and strategically located inventory throughout the Northern Hemisphere, insures consistent, rapid shipment tailored to customer specification requirements.

Horizontal Self Priming Process Pump - Model PWA-SP

Single component casing with primer and air removal chamber requiring no external priming devices.
ANSI B73.1 end suction, top discharge back pull out process pump.
High strength carbon steel liquid end with a broad range of alloyed corrosive resistant materials of construction available.
Rigid heavy duty shaft and bearing system design, exceeding ANSI B 73.1 bearing life specifications. 316 SS shaft material is standard.
5 year unconditional bearing frame warranty is standard with every product.
Proven flinger disk lubrication device to ensure effective bearing lubrication. Provides 30% increased bearing L10 life and minimum 15º lower bearing operating temperatures compared to flood oil design.

PWA-SP, Self- Priming process pump is uniquely designed to provide all in one pump priming and air removal without the need for priming devices such as air separator, check valve or external priming equipment and designed, built and tested in the USA to ANSI and ISO exacting standards, while enhancing the typical design to the next level of reliability. High strength carbon steel liquid end and frame adapter material, additional casing thickness and up graded bearing lubrication for increased bearing life are just a few no charge features considered extra from other manufacturers. Coupled with a fully staffed professional sales and service teams and strategically located inventory throughout the Northern Hemisphere insures consistent, rapid shipment tailored to customer specification requirements.

For more information, please visit the PumpWorks Industrial website.
